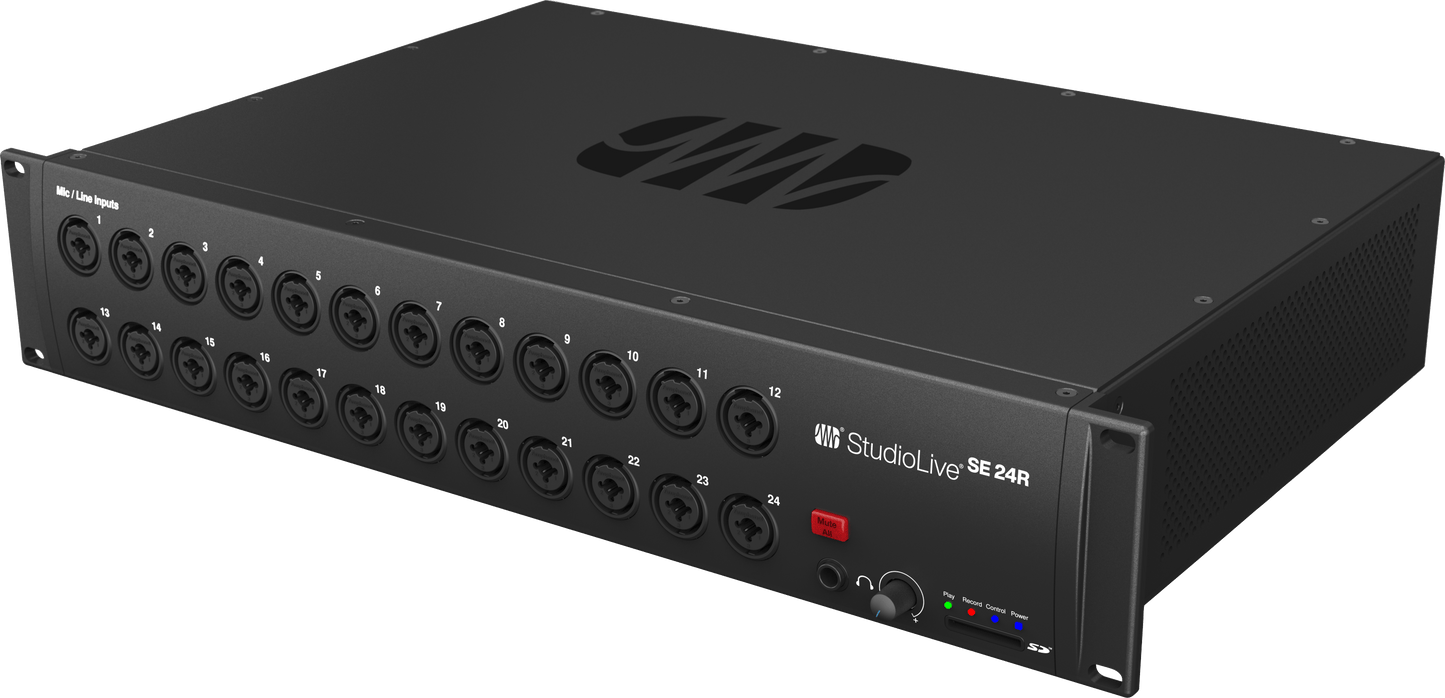

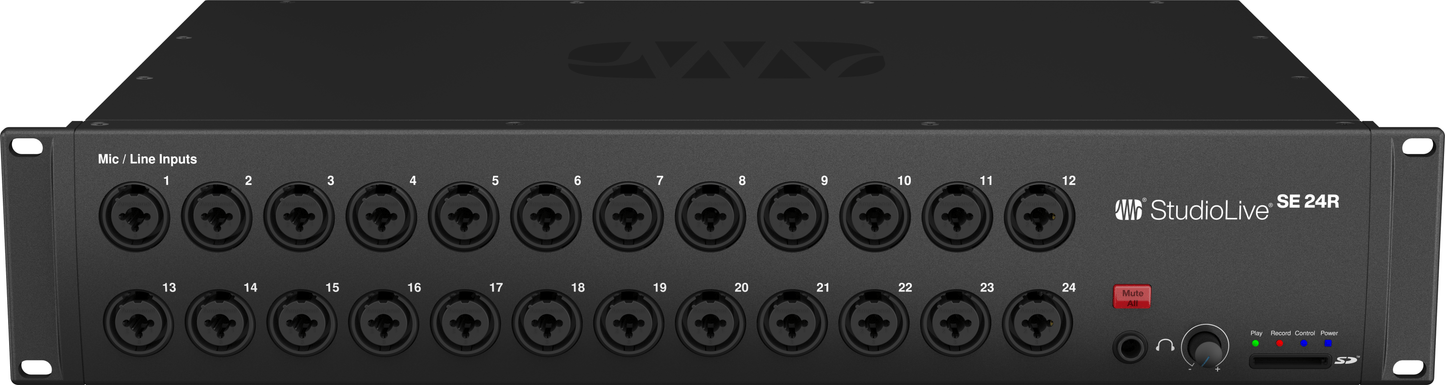

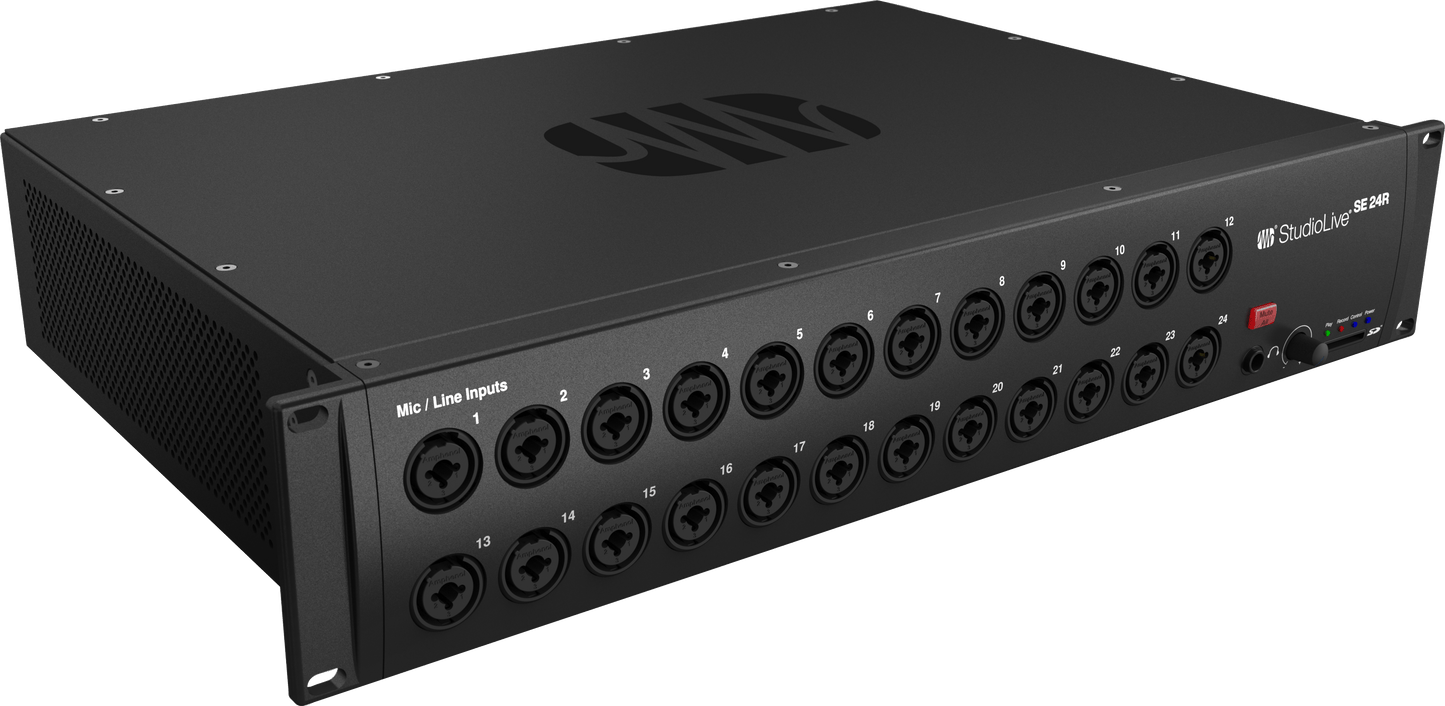

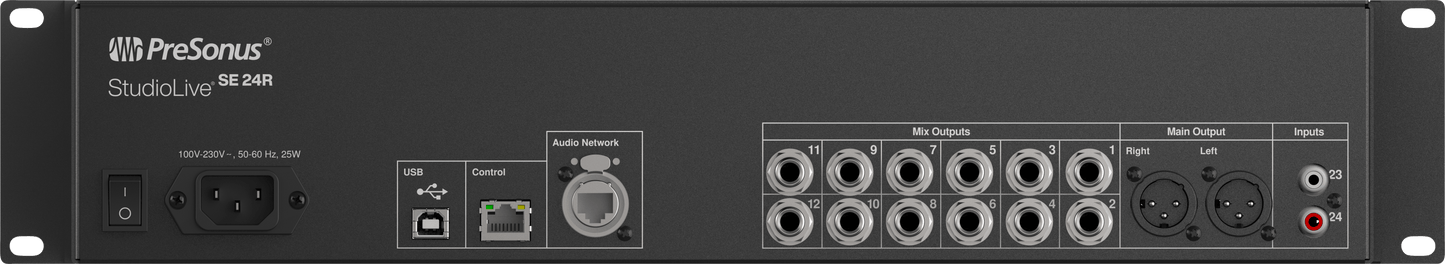

StudioLive® SE 24R Digital Rack Mixer
StudioLive® SE 24R Digital Rack Mixer
SKU:
2779206205
Regular price
6.549,00 zł
Regular price
6.549,00 zł
6.549,00 zł
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Overview
40-channel rack mixer with 24 onboard XMAX-R recallable preamps, 16 FlexMixes plus four dedicated subgroups, multitrack USB plus stereo SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, and recording
The StudioLive SE 24R delivers full-scale mixing power in two rack spaces. With 24 XMAX-R preamps and 16 FlexMixes, plus 4 subgroups, 4 dedicated FX mixes, and 24 DCAs, this mixer manages large channel counts effortlessly. Integrated USB 64x64 audio interface, onboard SD capture, and Capture software with Virtual Soundcheck streamline recording and playback.
Milan-certified AVB networking ensures plug-and-play connectivity with StudioLive Series III consoles and stageboxes, while per-channel source switching (analog, USB, SD, AVB) simplifies hybrid setups. Universal Control and QMix-UC provide wireless mixing and monitor control for engineers and performers.
Overview
Features
- 40-channel digital rack mixer with 24 onboard XMAX-R recallable preamps
- 16 FlexMixes configurable as aux, subgroup, or matrix mixes
- 4 dedicated subgroups and 4 FX mixes with stereo returns
- 24 DCA groups for advanced mix control
- Continuously bidirectional 64x64 USB 2.0 audio interface
- Onboard stereo SD recording
- Capture integration with Virtual Soundcheck
- Milan-certified AVB networking for StudioLive Series III ecosystems
- Per-channel source switching (Analog, USB, SD, AVB)
- Universal Control remote mixing and Offline Editor
- QMix-UC personal monitor mixing
- Standalone, monitor mixer, or stagebox modes
- Perpetual license for Fender Studio Pro included
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Studio One Remote Installer v1.2 (Android)
- Capture 2 v2.4.0.50756 (Mac)
- Capture 2 v2.4.0.50756 (Windows)
- Capture v3.0.0.51747 (Mac)
- Capture v3.0.0.51747 (Windows)
- Capture v3.0.1.52030 (Mac)
- Capture v3.0.1.52030 (Windows)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
LARGE-SCALE MIXING POWER
40 channels with versatile FlexMix, subgroup, FX, and DCA routing.
ADVANCED ROUTING FLEXIBILITY
Perfect for monitor, broadcast, and installation workflows.
SEAMLESS RECORDING
A 64x64 USB audio interface, stereo SD recording, and seamless Capture integration with Virtual Soundcheck streamline every stage of production.
NETWORK AND WIRELESS READY
Milan-certified AVB, Universal Control, and QMix-UC for modern workflow integration.
FENDER STUDIO PRO INTEGRATION
Deep integration with Fender Studio Pro simplifies recording with direct preamp control and seamless switching between onboard and plug-in processing with Fat Channel XT.
Specs
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V EUR
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
StudioLive® SE 24R Digital Rack Mixer, Black, EU
Series
StudioLive®
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Height/Length
3.5” (90 mm)
Product Weight
10.8 lbs. (4.9 kg)
Product Width
19" (483mm)
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
