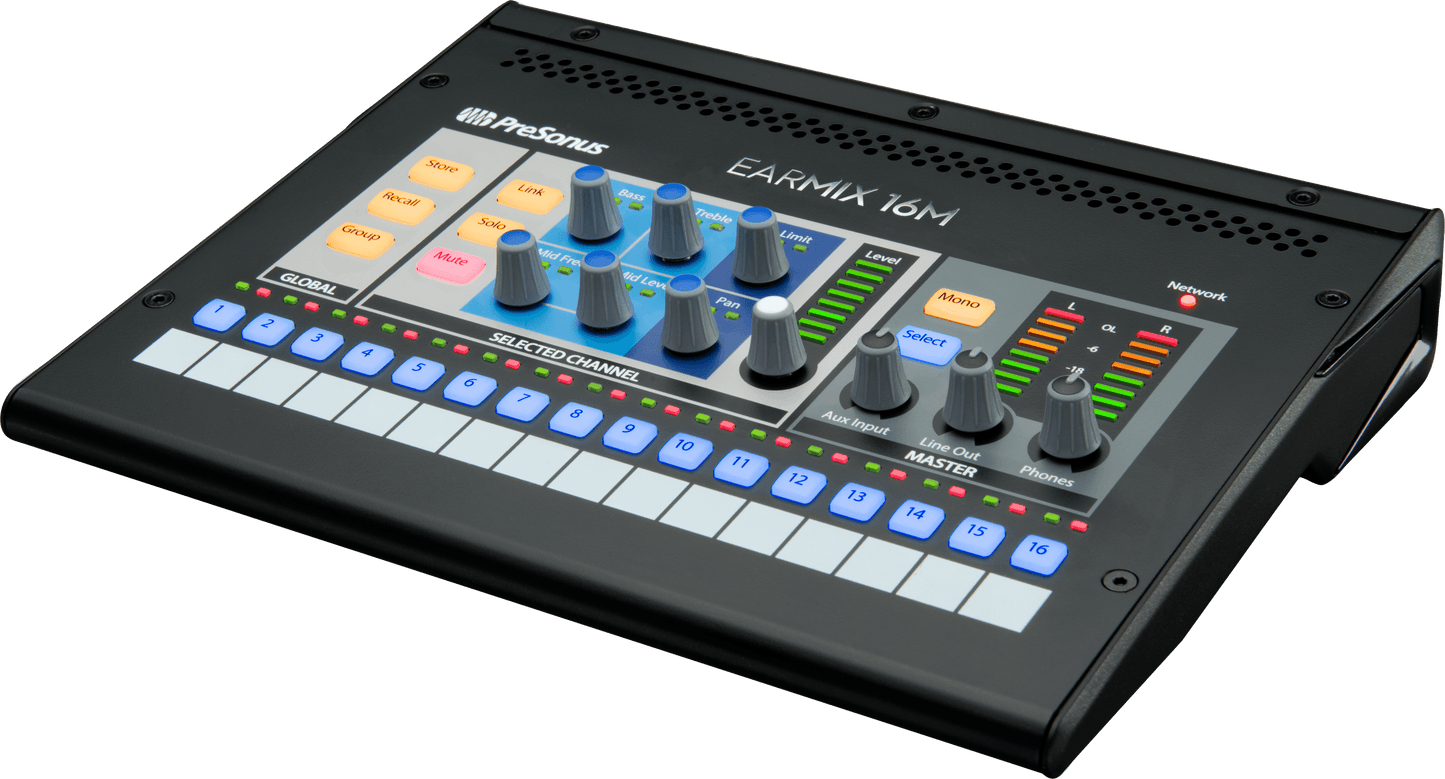

EarMix 16M Personal Monitor Mixer
EarMix 16M Personal Monitor Mixer
Regular price
1.569,00 zł
Regular price
1.569,00 zł
1.569,00 zł
Sale price
Unit price
per
inc. VAT*
Our loud and clear 16x2 AVB-networked personal monitor mixer with 3-band EQ and limiter on all channels and main mix.
Couldn't load pickup availability
Overview

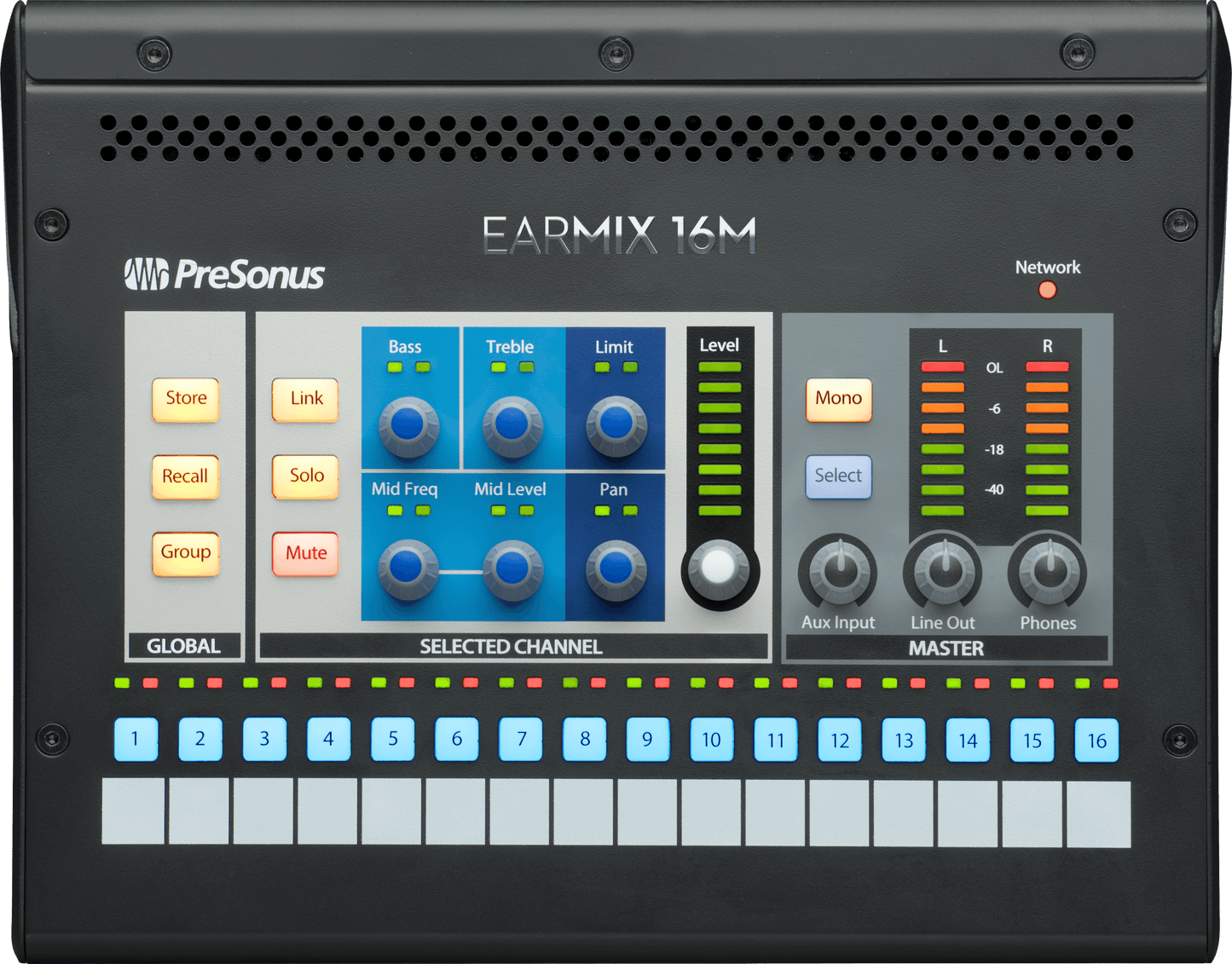

Give your musicians quick, intuitive hands-on control with the EarMix 16M. Designed to work seamlessly with PreSonus’ StudioLive Series III family of mixers, The EarMix 16M gives musicians 16 mono channels over a Milan-certified AVB network. Channels can be linked and grouped right from the surface and an onboard pan control makes getting the perfect stereo mix fast.

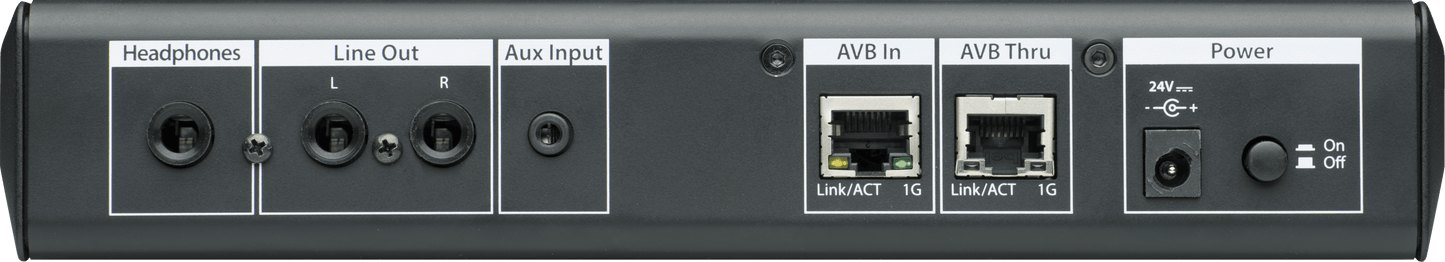

You also get a 3-band EQ and Limiter for every channel plus the main mix. An analog aux input makes connecting a metronome or an external source for referencing simple. A loud, clear headphone amplifier has more than enough power to drive high-quality in-ear-monitors even with low impendences. Stereo balanced TRS outputs gives musicians the option of using powered floor wedges for monitoring.
Network up to 24 EarMix 16M personal monitor mixers at once with your StudioLive Series III mixer or compatible Milan-certified device. Best of all, EarMix 16M can be powered over Ethernet (PoE) with a compatible switch, like the PreSonus SW5e, or use the included power supply. With a streamlined, uncluttered user interface and flexible onboard controls, the EarMix 16M makes personal monitoring mixing from stage easy.
Overview
Features
- 16 Mono Inputs with level, pan, solo, mute, and stereo link controls
- 3-band EQ and Limiter for every channel, plus the main mix
- Channel grouping makes managing a mix easy
- Store up to 16 mix scenes
- Loud, clear headphone amp to drive low-impedance in-ear monitors
- Balanced ¼” TRS analog outputs to connect powered monitors
- Analog input for click or reference material
- Support for PoE power using compatible switch like the PreSonus SW5e
- Daisy chain multiple units with included power supply
- Milan-certified AVB with support up to 24 units
- Mic Stand adapter sold separately
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v4.3.3.100963 (Windows)
- Universal Control v4.3.3.100963 (Mac)
- Universal Control 2.6 (Windows)
- Universal Control 2.6 (Mac)
- Universal Control 2.7 (Mac)
- Universal Control 2.7 (Windows)
- Universal Control 2.9.1 (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
PoE: Remote power for networked devices.
The EarMix 16M can be powered with its included external power supply or over the same Ethernet connection that’s used for AVB network audio. Thanks to Power over Ethernet (PoE), a single cable delivers both digital audio and electrical power. While compatible with any AVB switch that provides PoE, PreSonus’ SW5E five-port AVB switch enables you to connect multiple EarMix 16Ms to the AVB network and provides PoE.
A complete networked solution.
The StudioLive Series III ecosystem of networked products are at the forefront of AVB networking technology. Designed to complement each other, the ecosystem is easily expanded and quickly configured. The EarMix 16M adds simple personal monitoring that can be located anywhere on the network.
The ultimate monitoring system.
When combined with a StudioLive Series III rack mixer, the EarMix 16M becomes a complete personal monitoring solution that can be added to any mixing system. Simply connect the outputs of your installed mixer to the StudioLive, route audio via AVB to your EarMix, and you’ll have independent reverb, compression, and more to your monitoring system.
Specs
Headphone Jack
1/4" Stereo
Voltage
24V DC
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
EarMix 16M Personal Monitor Mixer, Black
Series
EarMix
Digital Audio AVB Audio Network Ports
RJ-45
Product Depth
7.6" (19.3cm)
Product Height
1.8" (4.57 cm)
Product Height/Length
1.8" (4.57 cm)
Product Weight
1.2 lbs (0.5 kg)
Product Width
9.4" (23.8 cm)
Refinement Weight
25-under
Supported Sample Rates
48 kHz, 44.1 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
150 mW /Channel at 60 Ω
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
